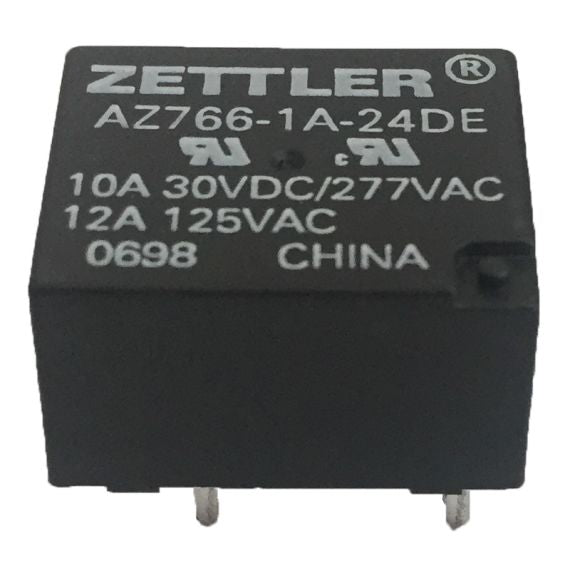

Relè AZ766-1A-24DE - 10A 30VDC 12A 125VAC - ZETTLER
Relè AZ766-1A-24DE - 10A 30VDC 12A 125VAC - ZETTLER
Prezzo di listino
€1,42 EUR
Prezzo di listino
Prezzo scontato
€1,42 EUR
Prezzo unitario
per
Imposte incluse.
SKU:
Impossibile caricare la disponibilità di ritiro
Technical Specifications
Physical | |
| Contact Material | Tin , Silver |
| Mount | Through Hole |
| Number of Pins | 4 |
| Weight | 6 g |
Technical | |
| Coil Current | 18.75 mA |
| Coil Resistance | 1.28 kΩ |
| Coil Voltage (DC) | 24 V |
| Max Current Rating | 13.5 A |
| Max Operating Temperature | 85 °C |
| Max Voltage Rating (AC) | 400 V |
| Max Voltage Rating (DC) | 150 V |
| Min Operating Temperature | -40 °C |
| Operate Time | 8 ms |
| Termination | PC Pin |
| Throw Configuration | SPST |
Compliance | |
| Lead Free | Lead Free |
| RoHS | Non-Compliant |
